He-115B Reform Record — Original 05

Note

This page preserves the original forum-based record as closely as possible to its original posting structure.

The original forum entries were arranged in reverse chronological order. That order is retained here for archival preservation.

The text in the highlighted boxes is based on the original forum posts by Kazu Fukuda. It is shown separately in order to distinguish the original source text from the explanatory and editorial text added by the archive.

For a reconstructed chronological reading, see:

Source Information

  • Original format: forum post archive
  • Preserved order: reverse chronological order
  • Date range of entries on this page: 2008-02-17 to 2008-02-23
  • Entry numbers included here: No.665 to No.676
  • Original post text: Kazu Fukuda
  • English translation and page organization: Japanese Solid Model Archive

Original Record Navigation

He-115B Reform Record ｜ Original 01 ｜ Original 02 ｜ Original 03 ｜ Original 04 ｜ Original 05

Previous: Original 04 — Markings, painting, and final preparation ｜ Return to: He-115B Reform Record

[2008-02-23 12:19:41] No.676

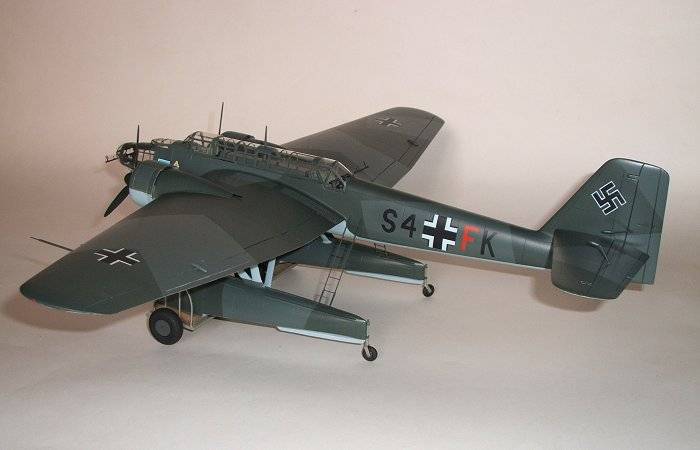

Completion

Completion

Original post text: Kazu Fukuda / English translation

It is finally completed.

[2008-02-23 12:15:59] No.675

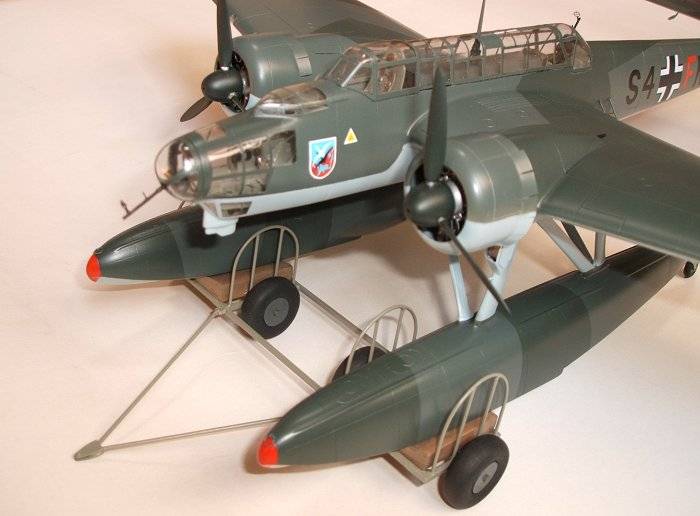

Attaching the floats to the body

Attaching the floats to the body

Original post text: Kazu Fukuda / English translation

The floats were attached to the main body, and the propellers and machine guns were also installed.
With this, the model was finally completed.

It is shown here placed on the float trolley.

[2008-02-21 16:45:25] No.674

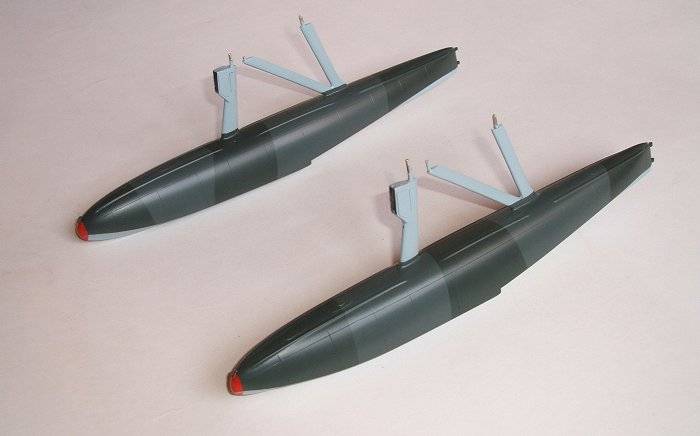

Finishing the floats

Finishing the floats

Original post text: Kazu Fukuda / English translation

Small rings for passing mooring ropes through were attached to the tips of the floats.

Now the only remaining task is to attach the floats to the main body.

[2008-02-21 16:40:35] No.673

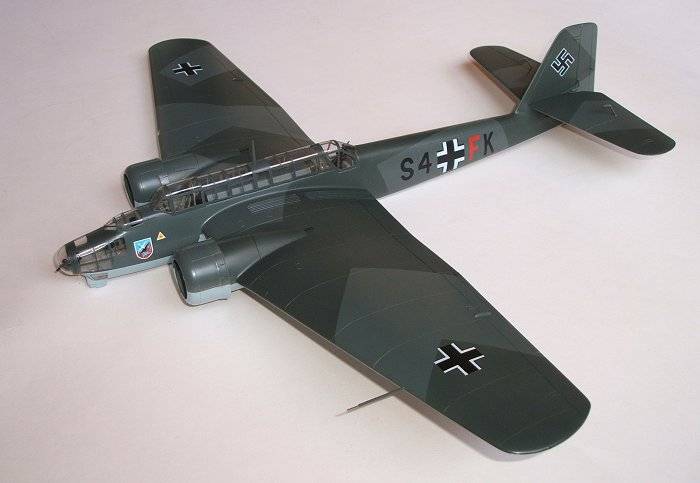

Attaching the horizontal tailplane

Attaching the horizontal tailplane

Original post text: Kazu Fukuda / English translation

The horizontal tailplane was attached, and the engine cowlings were also installed.
Mass balances, the antenna, the pitot tube, and other small parts were also attached, so the model has finally begun to look like a convincing He 115.

[2008-02-20 16:39:00] No.672

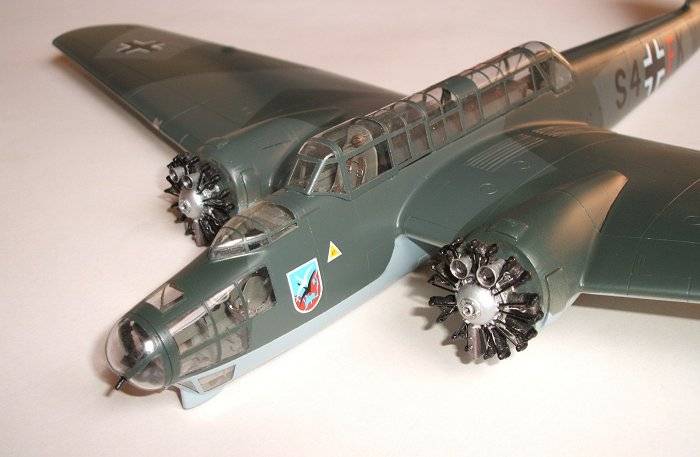

Attaching the canopies and engines

Attaching the canopies and engines

Original post text: Kazu Fukuda / English translation

The masking was removed from the bombardier’s canopy, and the canopies for the cockpit and rear gunner’s position were attached.
The BMW 132 engines were also installed in the nacelles.

[2008-02-19 15:31:42] No.671

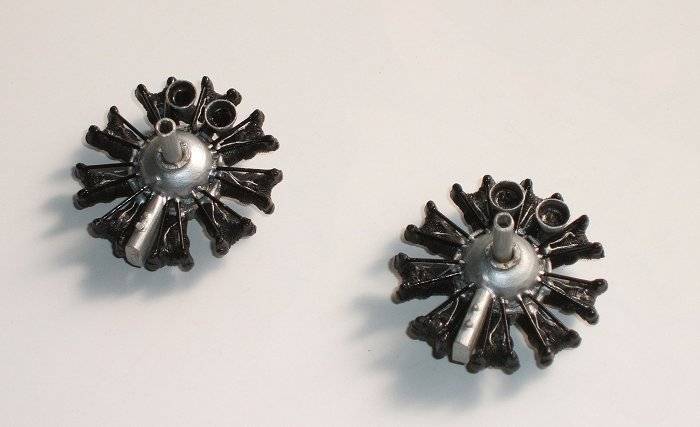

BMW 132 engines

BMW 132 engines

Original post text: Kazu Fukuda / English translation

The BMW 132 engines were finished.

The cylinder blocks and crankcases are resin parts that were given to me by the late Honorary Chairman Kotakeuchi. Push rods, ignition plug wires, and other small parts were added to complete the assemblies.

[2008-02-18 13:43:02] No.670

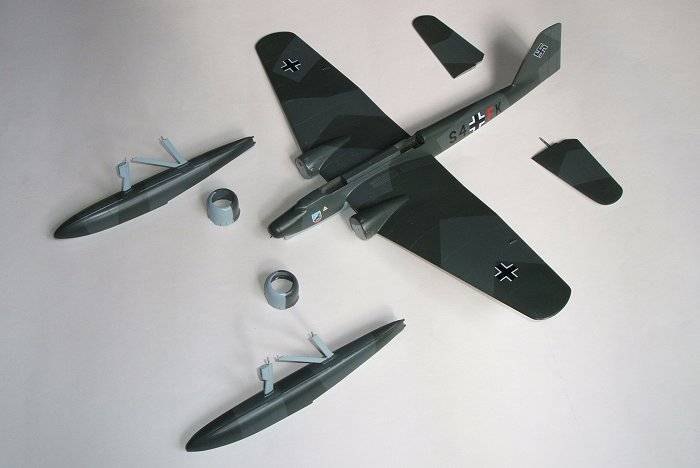

Painting the upper surfaces

Painting the upper surfaces

Original post text: Kazu Fukuda / English translation

After the RLM 72/73 upper surface colors had dried, the masking was removed.

Small scratches made when removing the masking tape will be carefully touched up with a brush.

[2008-02-17 13:54:42] No.667

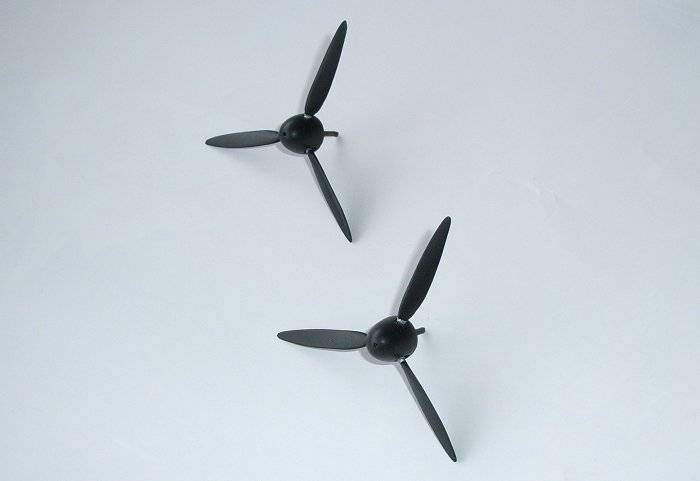

Finishing the propellers

Finishing the propellers

Original post text: Kazu Fukuda / English translation

The propellers and spinners were also painted and finished.

[2008-02-17 13:53:32] No.666

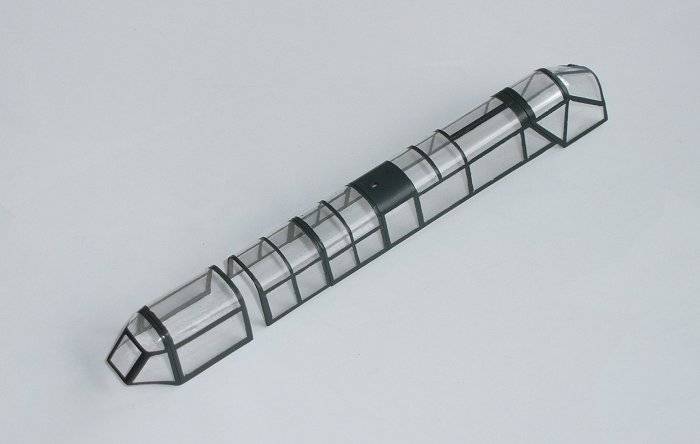

Finishing the canopies

Finishing the canopies

Original post text: Kazu Fukuda / English translation

The canopies were finished.

[2008-02-17 09:45:23] No.665

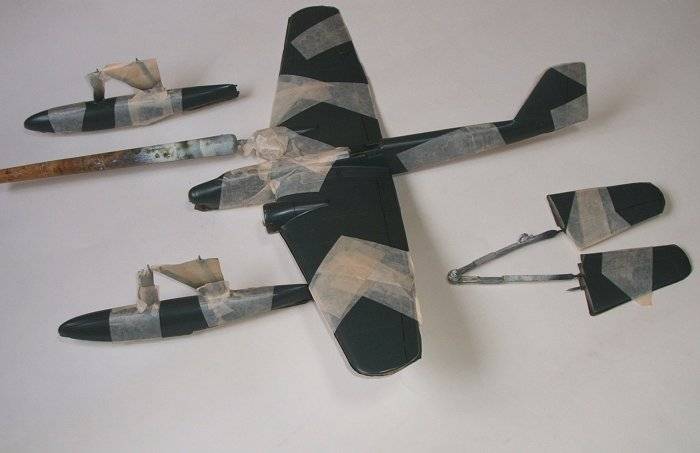

Painting the upper surfaces

Painting the upper surfaces

Original post text: Kazu Fukuda / English translation

The upper surface colors are the RLM 72/73 splinter camouflage.

RLM 73 was painted first, and this photograph shows the model masked in preparation for painting RLM 72.

Archival Note

This page preserves the original forum sequence for documentary purposes.

It should be read as a preserved source layer rather than as a reconstructed analytical presentation.

For a guided reading in chronological and interpretive form, see:
