Fw 200 C-3 Construction Record — Original 01
Material Preparation and the Emergence of the Overall Form
Note
This page is an original record page reconstructed as closely as possible in chronological order from Kazu Fukuda’s Fw 200 C-3 construction record.
It covers the earliest stage of the construction process: material preparation and the trial assembly carried out after the main blocks had been shaped.
On the existing site, these records were included within a group called “mock-up.” In this archive, they have been repositioned according to confirmed dates so that the progress of the construction process can be read more clearly.
The text of each entry is shown in a highlighted box in order to make clear that it is based on Fukuda’s original article text.
Source Information
- Original format: record published on an existing site based on forum posts
- Reconstruction policy: chronological rearrangement based on dates and construction process
- Dates included on this page: January 17, March 9
- Main contents: material preparation, shaping of main blocks, trial assembly, confirmation of the overall form
- Original article text: Kazu Fukuda
- Page organization: Japanese Solid Model Archive
Original Record Navigation
Fw 200 C-3 Construction Record ｜ Original 01 ｜ Original 02 ｜ Original 03 ｜ Original 04 ｜ Original 05 ｜ Original 06 ｜ Original 07
Position of This Page
The construction of the Fw 200 C-3 begins with preparing the materials and arranging the main blocks.
At this stage, detailed work has not yet begun. However, the elements that will later form the whole aircraft are already beginning to appear: fuselage, wings, tail surfaces, nacelles, nose section, and wooden formers for heat-pressed canopies.
What is important in Original 01 is not that the completed form has already been achieved.
Rather, it is that the groups of parts that will support the completed form are placed together, still unglued, in order to check the overall volume and balance.
In other words, what we see here is not the finished aircraft. It is the starting point of the completed form.
[January 17]

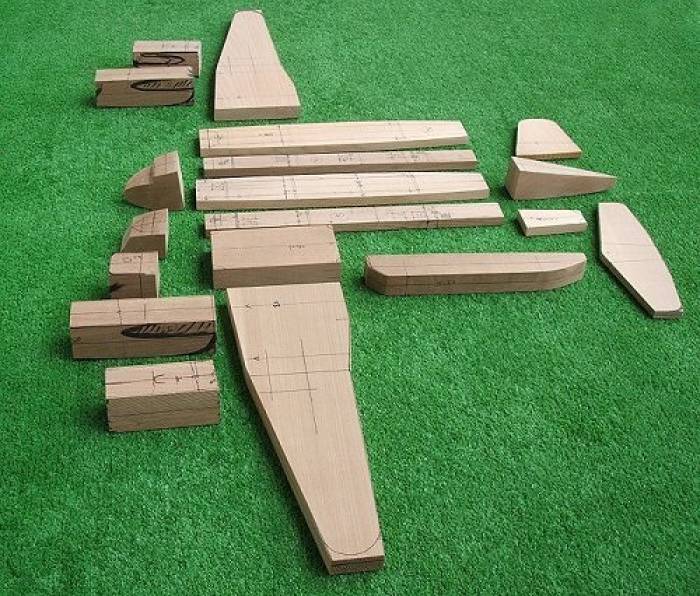

Material Preparation Completed
Editorial Note
As far as can be confirmed, this record belongs to the earliest stage of the Fw 200 C-3 construction record.
What is shown here is still material before it has been assembled into the form of an aircraft. However, in solid model making, material preparation is not merely a preliminary task.
At this stage, the maker must already anticipate the size, thickness, and carving allowance of the main parts that will later make up the aircraft: fuselage, wings, tail surfaces, nacelles, and other components.
In this sense, material preparation is the work of beginning to place the completed image inside the material.
[March 9]

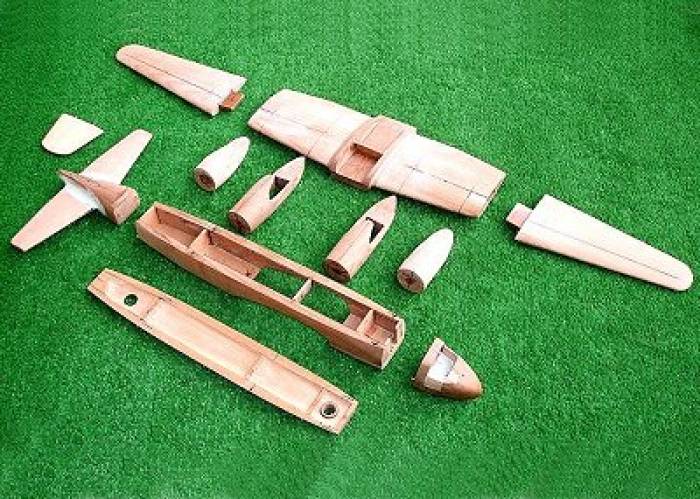

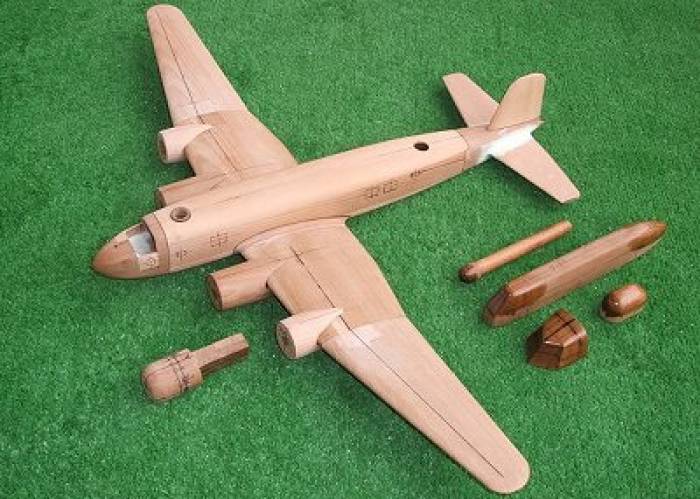

Shaping of Main Blocks Completed and Trial Assembly
Editorial Note
At this stage, the parts have not yet been glued together.
Therefore, this trial assembly is not a nearly completed state. It is a temporary arrangement for confirming the overall placement, mass, and balance.
What deserves particular attention is that not only the main body of the aircraft, but also the wooden formers for the engine nacelles and canopies are shown at the same time.
This indicates that the large exterior parts and the preparations for later transparent parts and details were progressing in parallel.
Here, the overall form of the Fw 200 C-3 is not yet fixed. It is being gradually confirmed through parts, wooden formers, and trial assembly.
Reading Note
What should be observed on this page is not the completed appearance, but how the completed image begins to be prepared.
On January 17, the model still exists as a collection of materials. By March 9, the main blocks have been shaped, and the trial assembly begins to reveal the overall outline characteristic of the Fw 200 C-3.
However, that form is not yet fixed.
Main Focus of This Stage
- Cutting out materials as components of the aircraft
- Shaping the main blocks
- Confirming the overall volume through unglued trial assembly
- Preparing wooden formers for engine nacelles and canopies
- Beginning to see the completed image as a relationship among groups of parts
At this stage, “making” does not yet mean finishing the details.
Rather, it means making the overall image that is to be built from this point onward visible through material and trial assembly.
In solid model making, grasping the overall form is extremely important. If the overall balance is misread at this early stage, it will affect all later work: interior construction, nacelles, canopies, engines, propellers, and painting.
In this sense, Original 01 is not merely a record of the beginning of work.
It is the starting point that shows how Fukuda attempted to bring the large aircraft called the Fw 200 C-3 into form from raw material.
Toward the Next Stage
The next original record moves into work on the fuselage interior.
The side windows are cut out, parts resembling fuel tanks and oil tanks are installed, and the work then proceeds to the nose section, cockpit, canopies, machine guns, and underside gondola.
Archival Note
This page reconstructs the records of the earliest construction stage in chronological order.
On the existing site, these materials were included as part of the “mock-up” category. In this archive, they are positioned as an independent original record page marking the starting point of the construction process.
This page does not explain the completed appearance of the model. It preserves the stage in which the completed image begins to emerge from materials and main blocks.
